X43W/T二通法蘭旋塞閥
主要類別：旋塞閥
發布日期：2019-06-29
瀏覽次數：
◆主要性能規范
|
公稱壓力 PN(MPa) |
0.6 |
1.0 |
MPa |
|
殼體試驗壓力 |
0.9 |
1.5 |
MPa |
|
密封試驗壓力 |
0.66 |
1.1 |
|
|
開啟壓力 PK |
0.5-0.7 |
||
|
適用介質 |
水、油品、氣 |
||
|
適用溫度 |
≤100℃ |
||

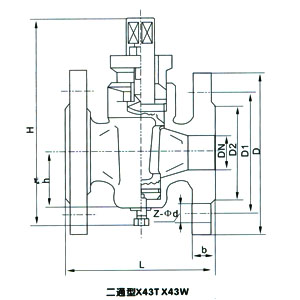

◆ X43T X43W X44T X44W
主要外形尺寸和連接尺寸單位：毫米
|
PN |
DN |
L |
H |
D |
D1 |
D2 |
b |
Z-φd |
h |
|
X43 |
20 |
90 |
124 |
105 |
75 |
55 |
16 |
4-14 |
34 |
|
25 |
110 |
133 |
115 |
85 |
65 |
16 |
4-14 |
38 |
|
|
32 |
130 |
152 |
130 |
100 |
78 |
18 |
4-18 |
45 |
|
|
40 |
150 |
212 |
145 |
110 |
85 |
18 |
4-18 |
55 |
|
|
50 |
170 |
260 |
160 |
125 |
100 |
20 |
4-18 |
74 |
|
|
65 |
220 |
295 |
180 |
145 |
120 |
20 |
4-18 |
82 |
|
|
80 |
250 |
327 |
195 |
160 |
135 |
22 |
4-18 |
95 |
|
|
100 |
300 |
425 |
215 |
180 |
155 |
22 |
8-18 |
135 |
|
|
125 |
350 |
482 |
245 |
210 |
185 |
24 |
8-18 |
154 |
|
|
150 |
400 |
512 |
280 |
240 |
210 |
24 |
8-22 |
172 |
|
|
X44 |
32 |
170 |
233 |
120 |
90 |
70 |
16 |
4-14 |
63 |
|
40 |
180 |
268 |
130 |
100 |
80 |
16 |
4-14 |
76 |
|
|
50 |
200 |
295 |
140 |
110 |
90 |
16 |
4-14 |
85 |
|
|
65 |
230 |
370 |
160 |
130 |
110 |
16 |
4-14 |
113 |
|
|
80 |
260 |
425 |
185 |
150 |
125 |
20 |
4-18 |
125 |
|
|
100 |
300 |
474 |
205 |
170 |
145 |
20 |
4-18 |
142 |
|
|
150 |
400 |
540 |
260 |
225 |
200 |
24 |
8-22
|
|
